Complete Guide to DMX Lighting Control Technology

DMX (Digital Multiplex), officially known as DMX512, is an industry-standard digital communication protocol used primarily to control lighting equipment and effects in theatrical, concert, and architectural settings. First developed in 1986 by the United States Institute for Theatre Technology (USITT), DMX has evolved to become the universal language that allows lighting controllers to communicate with a wide variety of fixtures and effects devices.

At its core, DMX is a unidirectional protocol that sends control data from a controller (like a lighting console) to receiving devices (such as LED lights, moving heads, fog machines, and more). The "512" in DMX512 refers to the 512 control channels that can be transmitted over a single DMX universe, with each channel capable of 256 different values (0-255). For larger installations, more advanced networking protocols like Art-Net and sACN can be used to extend these capabilities.

Key Features of DMX Technology:

• Standardized Protocol: Works across different manufacturers and equipment types
• Reliable Communication: Designed for real-time control with minimal latency

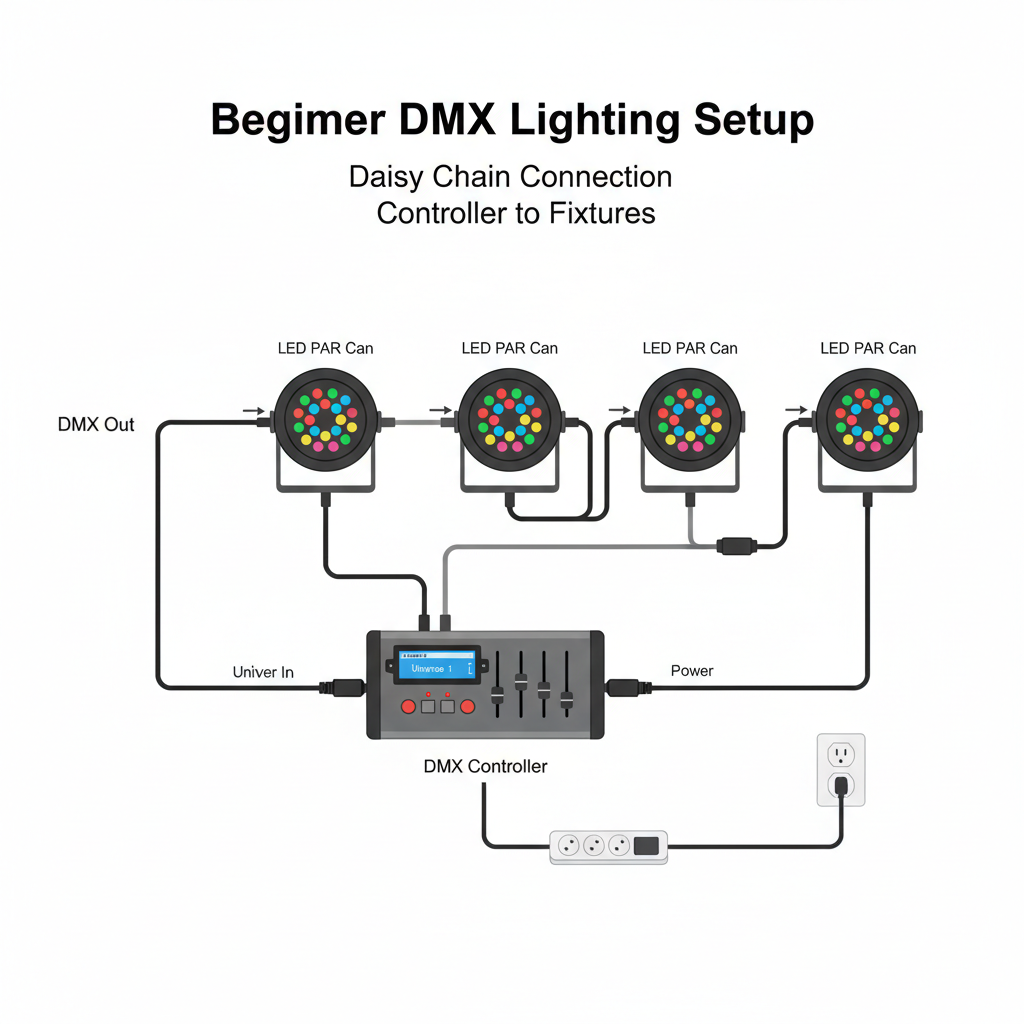

• Daisy-Chain Topology: Devices connect in sequence, simplifying cabling
• Multiple Universes: Complex setups can use multiple DMX universes (512 channels each)
• Wide Adoption: Industry standard for over 35 years

The DMX Protocol

DMX512 is an asynchronous serial protocol that transmits digital data between controllers and receiving devices. The protocol is based on the EIA-485 (previously RS-485) standard, using differential signaling over twisted-pair cable to provide noise immunity in electrically noisy environments like concert venues and theaters.

Each DMX data packet begins with a "break" signal, followed by a "mark after break" (MAB), and then a start code. After this header, up to 512 channels of 8-bit data (values 0-255) are transmitted sequentially. This entire packet is typically sent 44 times per second, providing smooth real-time control.

DMX Universes and Channels

A single DMX universe consists of 512 channels, each capable of transmitting a value between 0 and 255. Different lighting fixtures require different numbers of channels to control their various functions:

• A simple dimmer might use just 1 channel (intensity)
• An RGB LED fixture typically uses 3 channels (red, green, blue)
• A moving head light might use 16+ channels (pan, tilt, color, gobo, focus, etc.)

For larger installations requiring more than 512 channels, multiple DMX universes can be used, each with its own data line.

DMX Hardware Components

A typical DMX system consists of several key components:

• Controller: The source of DMX signals (lighting console, computer with DMX interface, etc.)
• Fixtures: Devices that receive DMX signals (lights, fog machines, etc.)
• Cables: Specialized DMX cables with proper impedance (typically 120Ω)
• Splitters/Repeaters: Devices that boost signals for long runs or multiple branches
• Terminators: 120Ω resistors placed at the end of DMX lines to prevent signal reflection

Advanced DMX Networking

For larger installations, consider these advanced techniques:

• Multiple Universes: Use DMX interfaces that support multiple universes when you need more than 512 channels
• Network Distribution: Convert DMX to network protocols like Art-Net or sACN for distribution over Ethernet
• Wireless DMX: Use wireless DMX transmitters/receivers for locations where running cables is impractical
• RDM (Remote Device Management): Implement RDM-compatible equipment for bidirectional communication and remote configuration

For advanced users, our DMX Programming Guide provides detailed instructions on programming more complex lighting sequences.

Troubleshooting DMX Issues

When your DMX system isn't working correctly:

• Check Addressing: Verify fixtures have correct, non-overlapping addresses
• Inspect Cables: Look for damaged cables or connectors
• Test Termination: Ensure the line is properly terminated
• Isolate Problems: Connect fixtures one by one to identify problematic devices
• Verify Controller Output: Use a DMX tester to confirm the controller is sending data

For network-based DMX systems, see our Art-Net & sACN troubleshooting guide for advanced diagnosis techniques.
